OT-215 8.5” Cerametallic Clutch-Flywheel Kits

$2,410$3,060

Click here to find a Tilton dealer near you

OT-215 8.5” Cerametallic Clutch-Flywheel Kits are primarily designed applications such Pro Touring and Track Day cars that are regularly driver at racetrack events and driven occasionally on the street.  They offer a good compromise between larger diameter/heavier (10.5”/11”) OEM-type clutches and smaller diameter/lighter 7.25” racing clutches.   Compared to the equivalent number of disc 7.25” clutch, OT-215 8.5” Cerametallic Clutches provide approximately 50% more mass for increased heat capacity to keep overall clutch temperatures down, while providing higher torque capacity and better modulation.

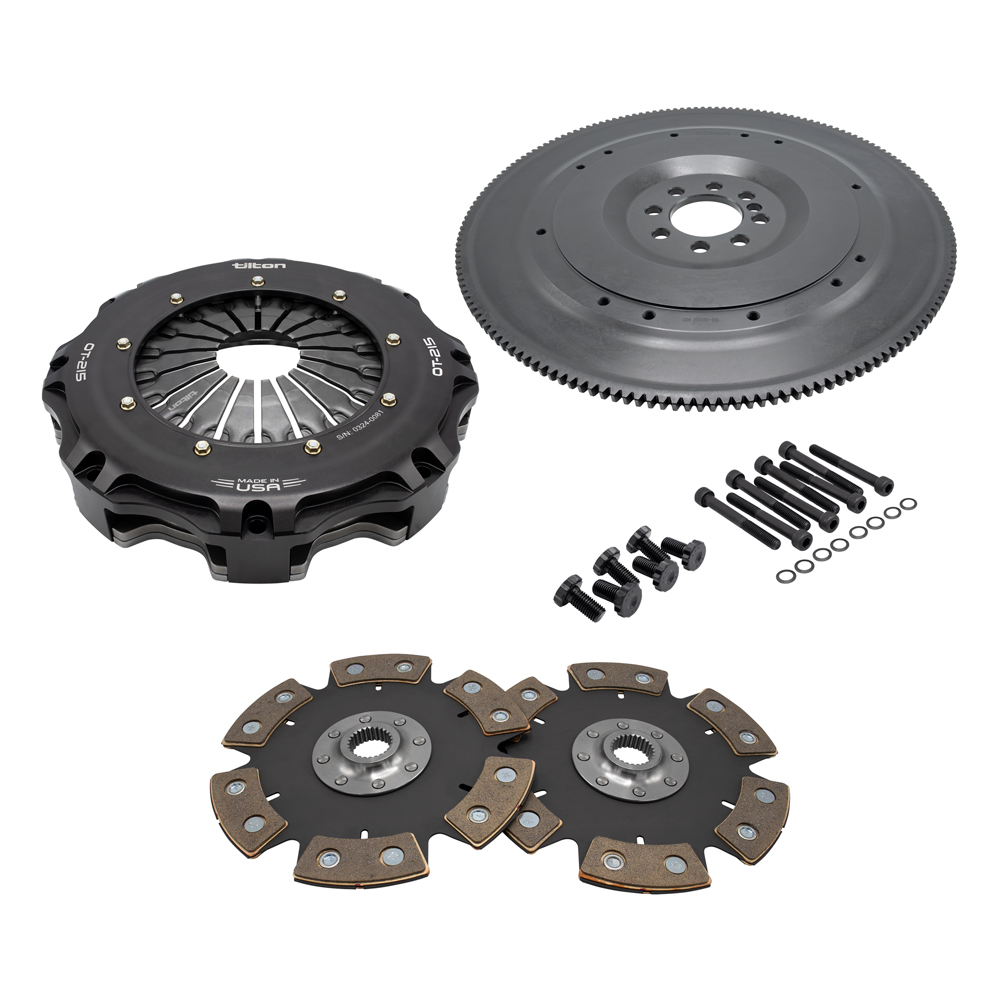

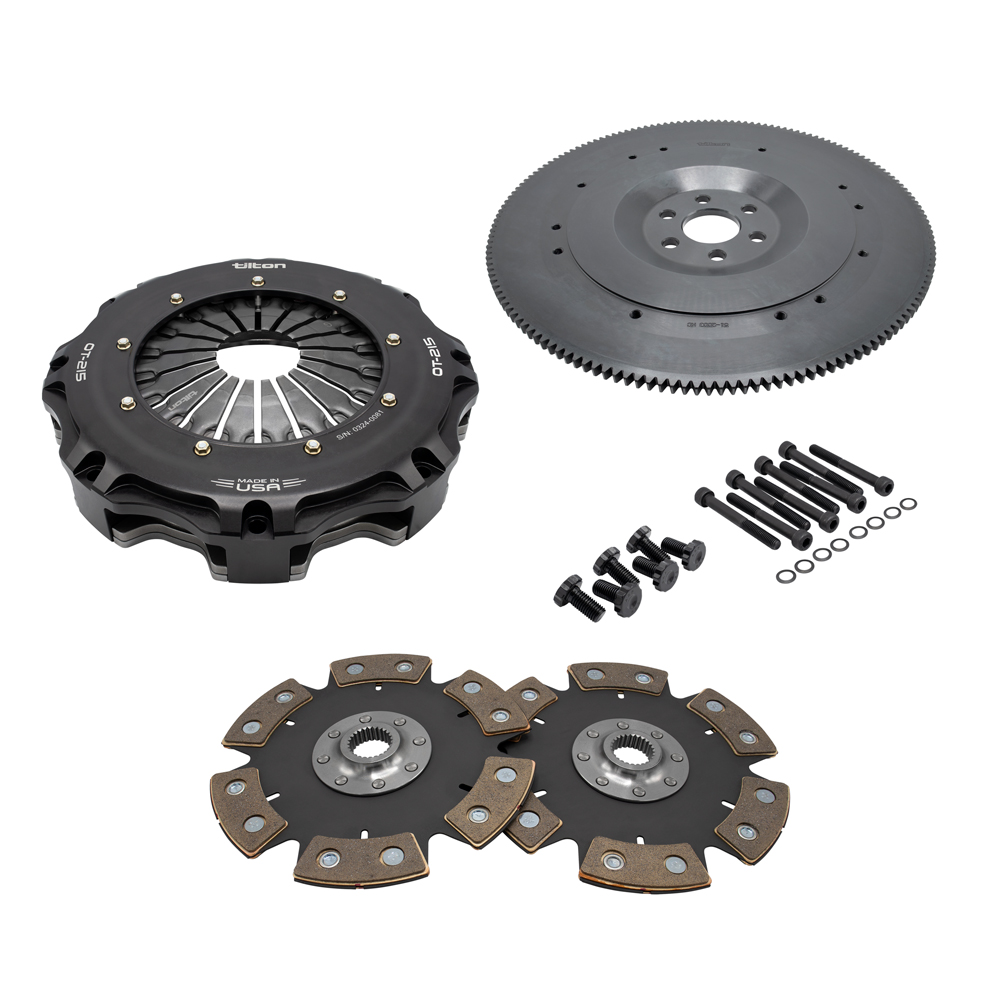

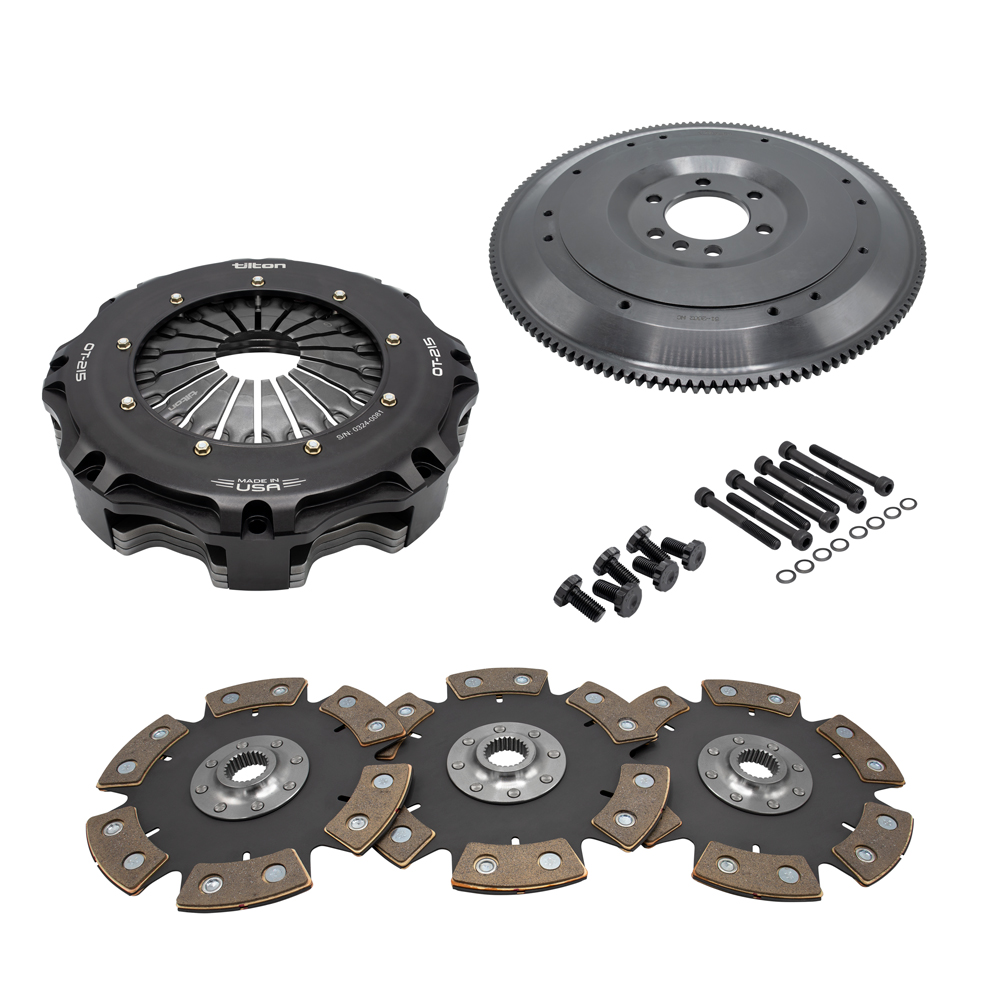

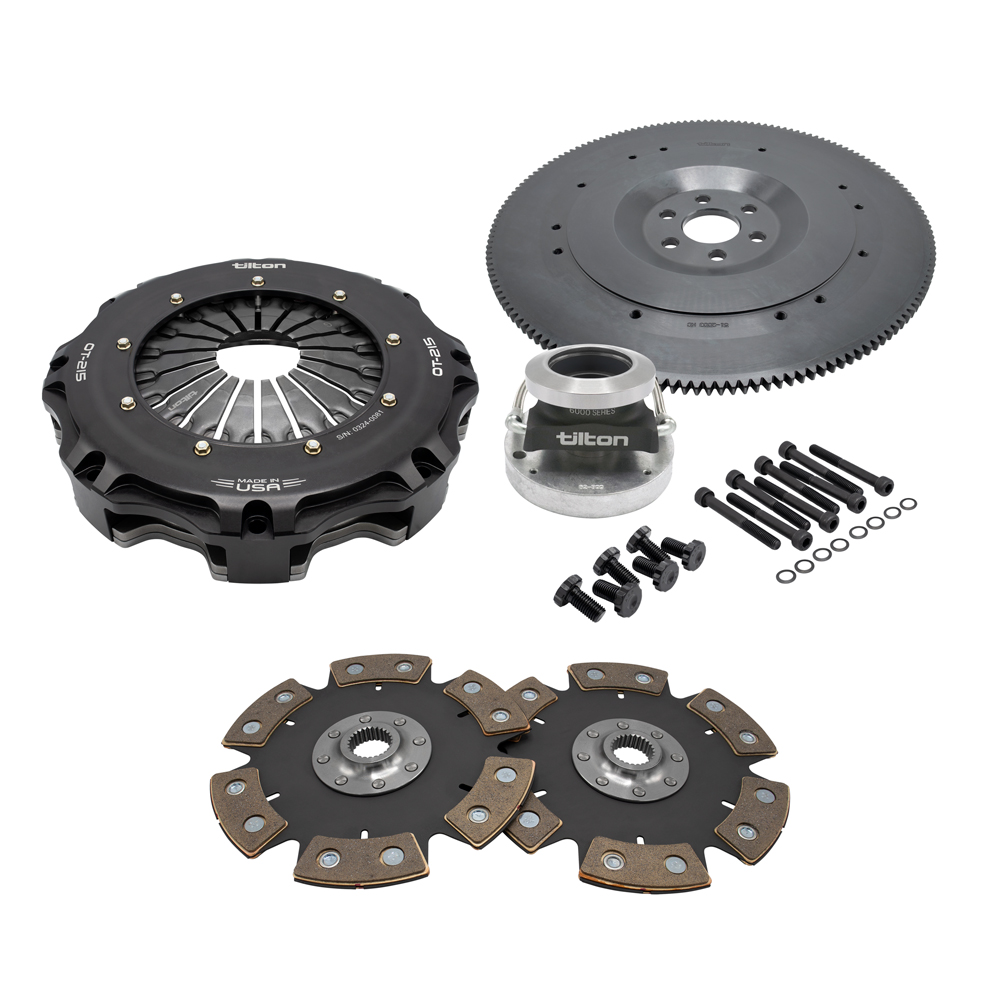

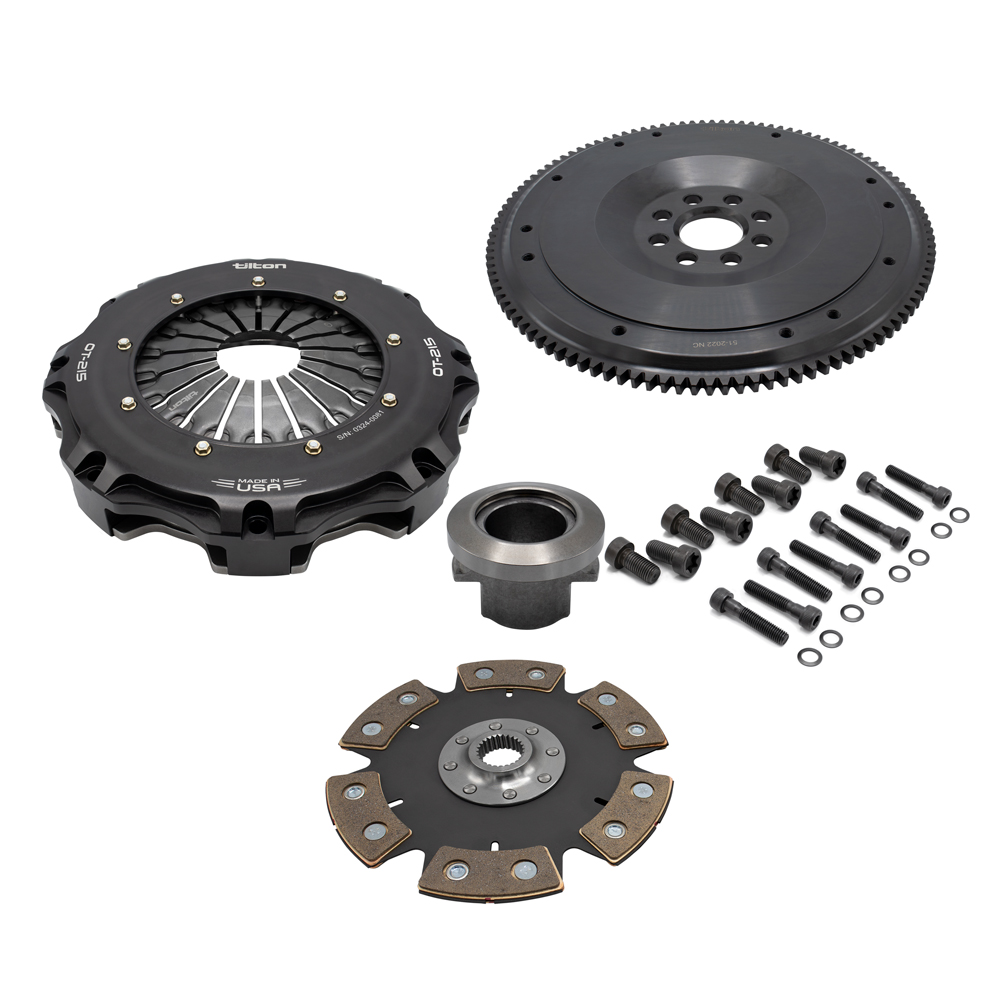

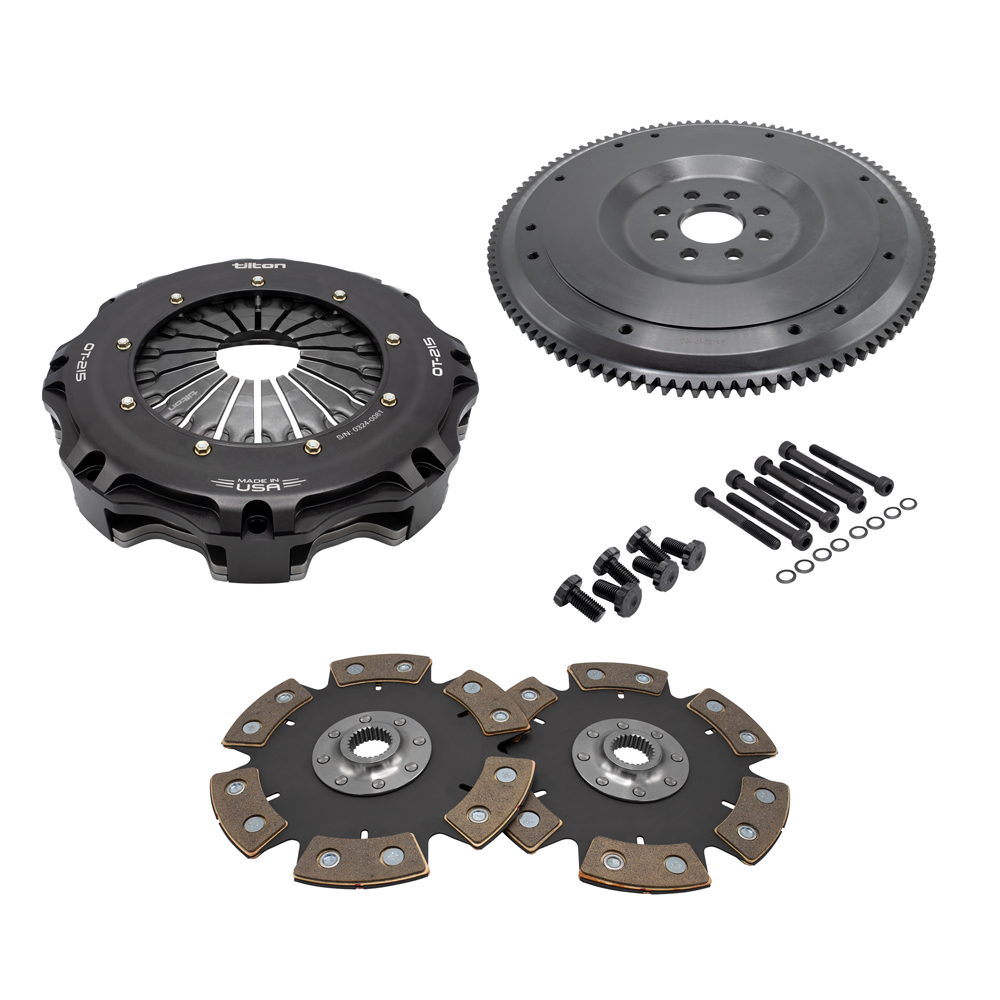

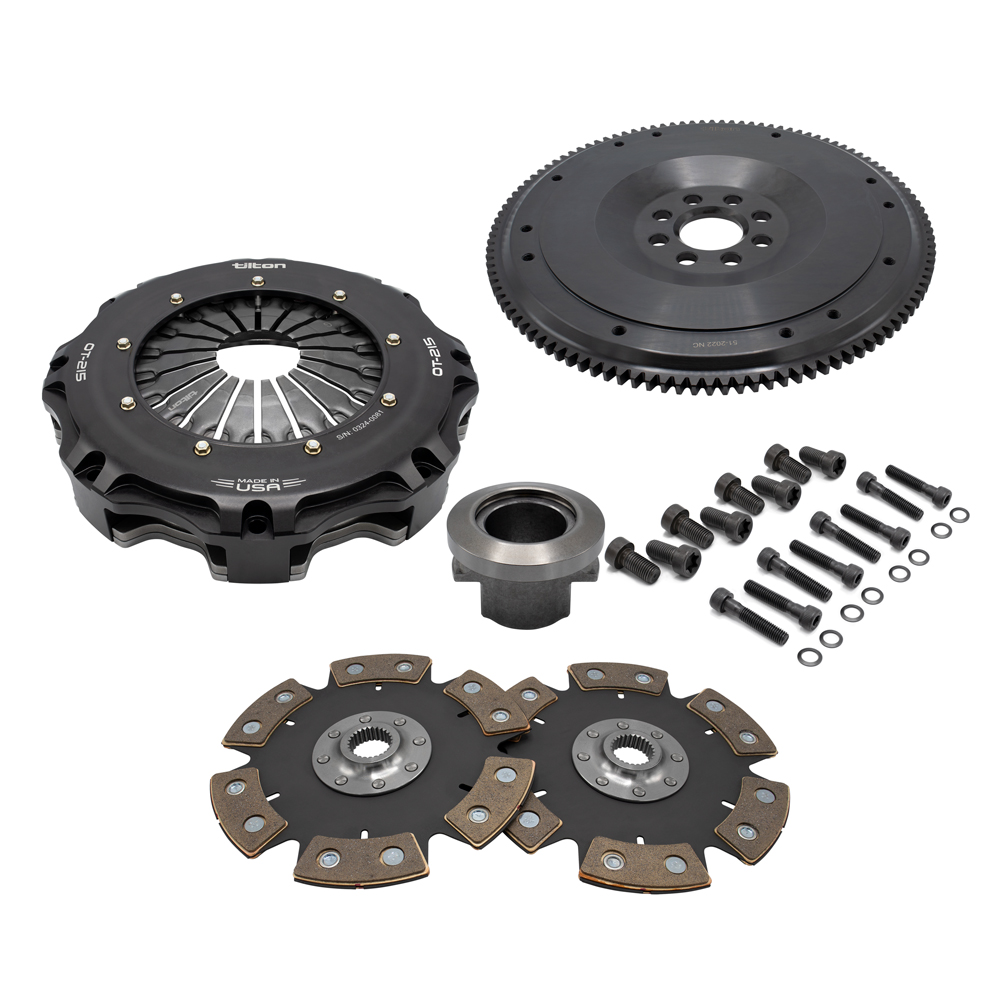

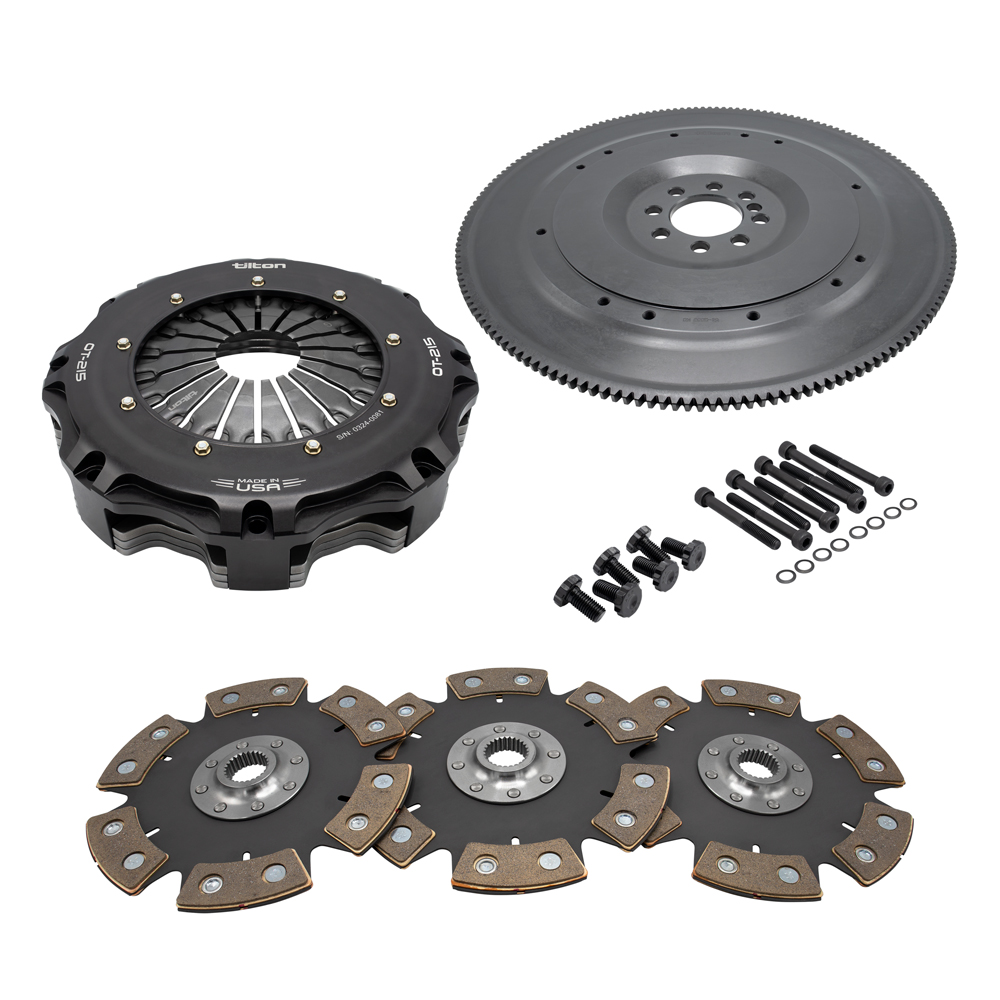

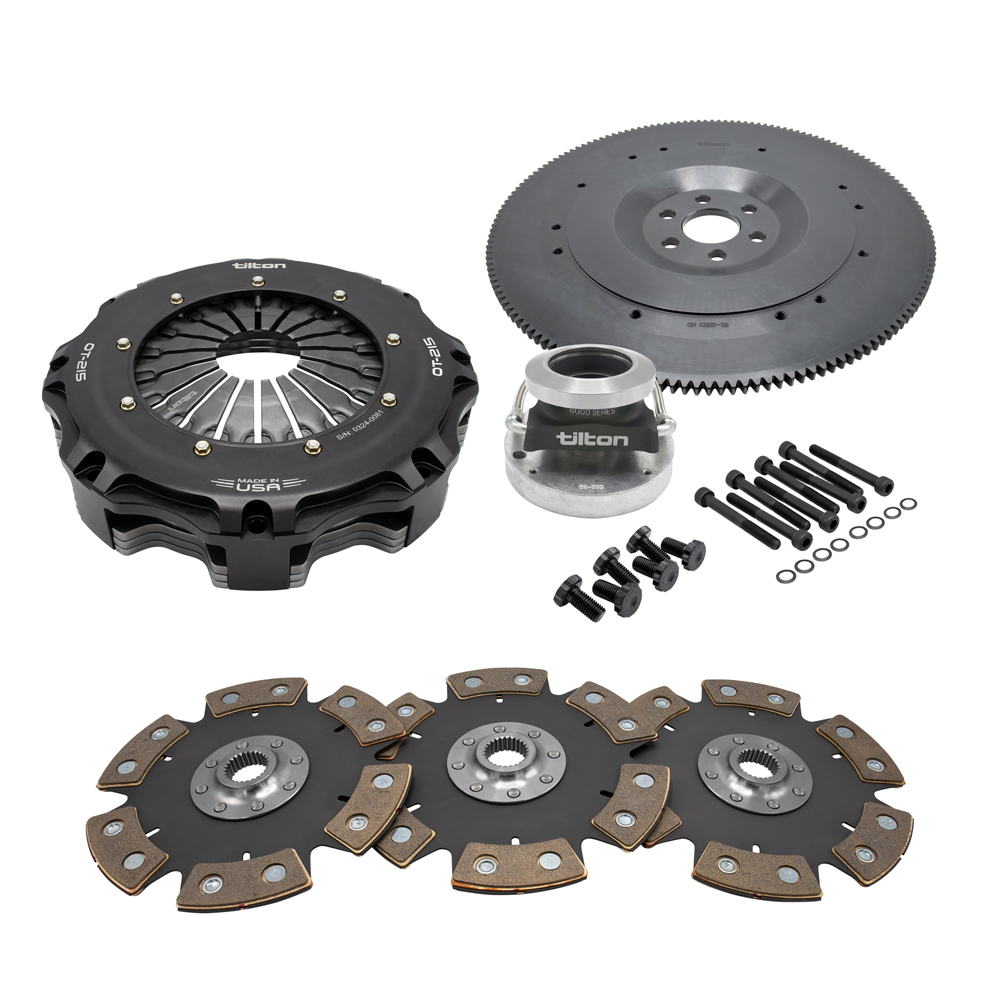

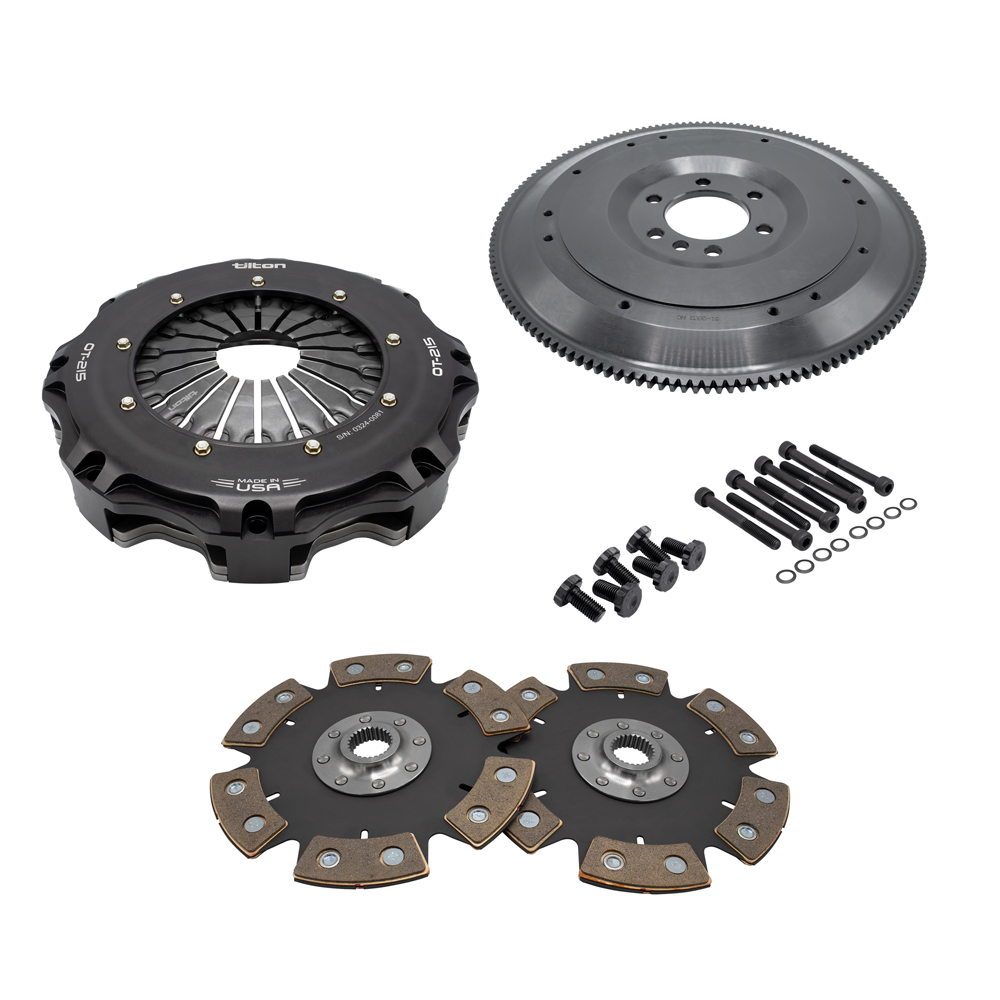

OT-215 Cerametallic Clutch-Flywheel Kits include an OT-215 8.5” clutch assembly, 1 5/32” x 26 (aka 1 1/8” x 26) spline discs pack, billet chromoly steel flywheel, clutch bolt kit and flywheel bolt kit.

Available for popular Chevy, Ford and Toyota engine applications.

APPLICATIONNUMBER OF DISCSTORQUE CAPACITYWEIGHT
CHEVY V8 (EARLY), 153-TOOTH, 26-SPLINE3-DISC1260 LB-FT31.0 LBS
CHEVY LS (6-BOLT), 168-TOOTH, 26-SPLINE3-DISC1260 LB-FT33.1 LBS
CHEVY LSA/LSX/LT1/LT4, 168-TOOTH, 26-SPLINE3-DISC1260 LB-FT33.1 LBS
FORD COYOTE, 164-TOOTH, 26-SPLINE3-DISC1260 LB-FT34.1 LBS
FORD SMALL BLOCK (NEUTRAL BAL), 157-TOOTH, 26-SPLINE3-DISC1260 LB-FT31.9 LBS
TOYOTA 2JZ, 115-TOOTH, 26-SPLINE3-DISC1260 LB-FT30.1 LBS
