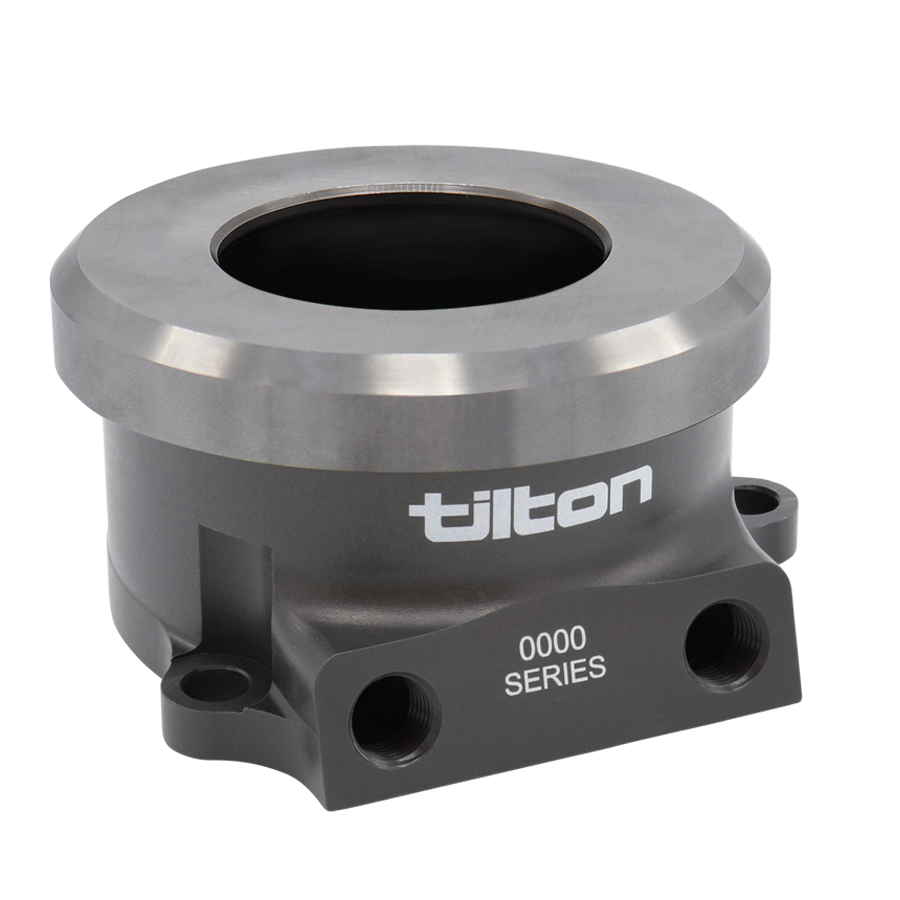

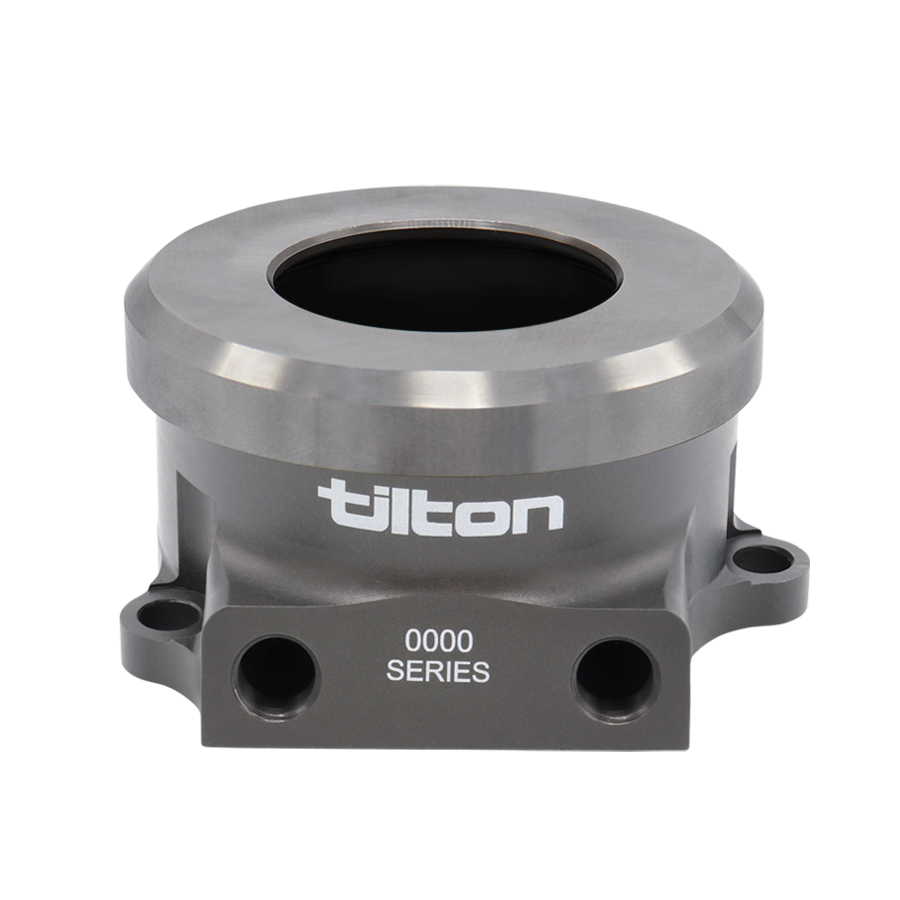

Tilton’s 0100-Series hydraulic release bearings feature a flat-face bearing for use with bent-finger clutch diaphragm springs. Designed for use with Tilton ST-246 clutches, and suitable for use with many non-Tilton 9” to 11” clutches, the 0100-Series hydraulic release bearings fit many popular racing transmissions designed to accept 3-bolt pattern “Saab 900-type” hydraulic release bearings.
Tilton HRBs are designed, machined, assembled and checked by Quality Control at Tilton’s headquarters before they are approved and shipped. By using the highest quality materials, combined with the latest machining methods, our designs can be light, strong, and provide race-proven results, time and time again.
Using the latest technologies, Tilton HRBs are treated with a durable, low-friction coating, created specifically for our use on HRBs. This coating aids in the long-wearing durability and high-performance they are known for.
For proper seal tension, Tilton has created a unique multi-edged quad-tension seal, to ensure consistent feel, long term wearability, and lasting reliability. Seals have been tested to hundreds of thousands of actuations without failure, which is why this technology is built into every Tilton HRB.
The resilient orange seal is your guard against unwanted HRB bore damage.
Using the highest quality components, Tilton bearings are tested extensively for long life durability.
Coupling high-quality, durable bearings with a constant contact design, your system is always ready to engage.
As your clutch wears, Tilton HRBs compensate to maintain the same pedal feel, shift after shift.
Contact Tilton for more information, or your local Tilton distributor to purchase.
Mount: 3-bolt “Saab 900-type” pattern
Weight: .95 lbs
Application: 8.5″ – 11.0″ bent finger clutches
Overall height: 1.79″ (45.5mm)
Contact: 1.71″ – 3.03″ (43.4mm – 77.0mm)
Bearing type: Flat-face
Body and piston material: Billet aluminum
Piston area: 1.215 in2 (784mm2)
Maximum stroke: .700″ (17.8mm)
Ports: AN-3 (3/8″-24)
Included in kit: AN-3 fittings (2)
Typical applications: Fits many popular racing transmissions designed to accept 3-bolt pattern “Saab 900-type” hydraulic release bearings.
