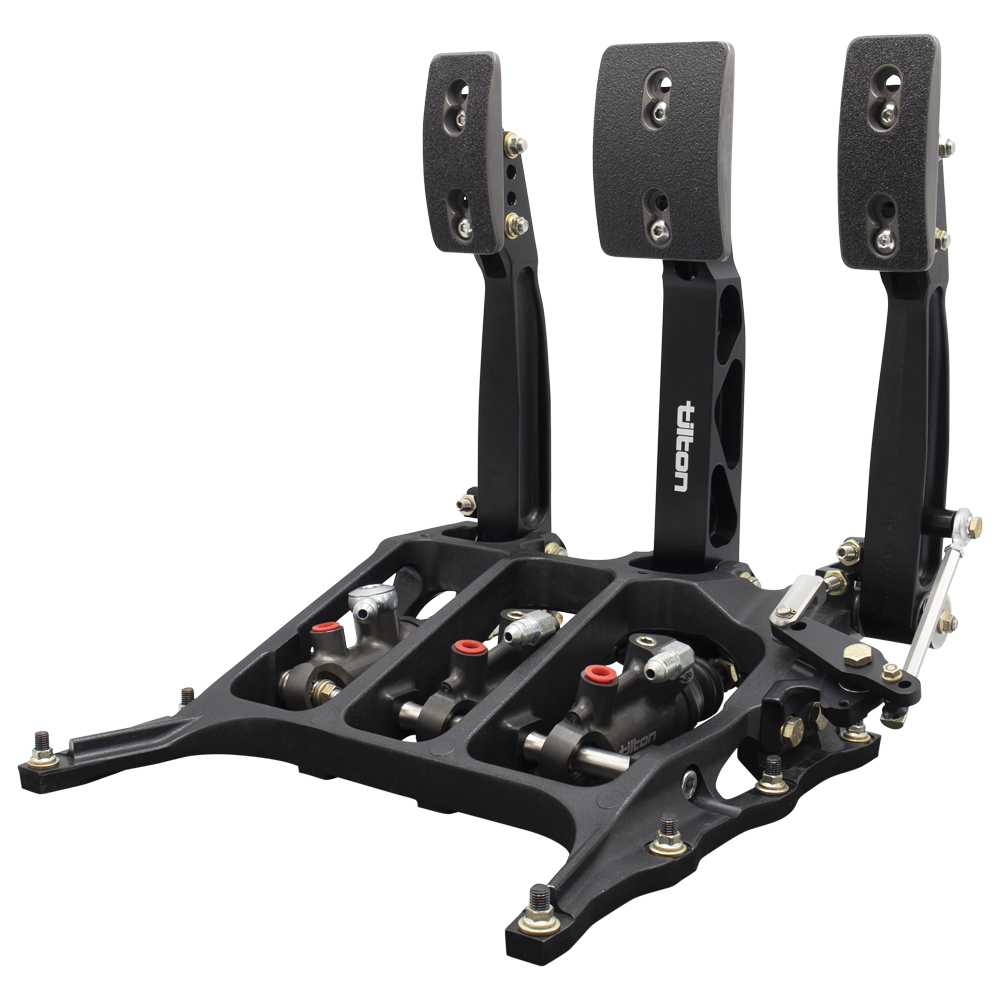

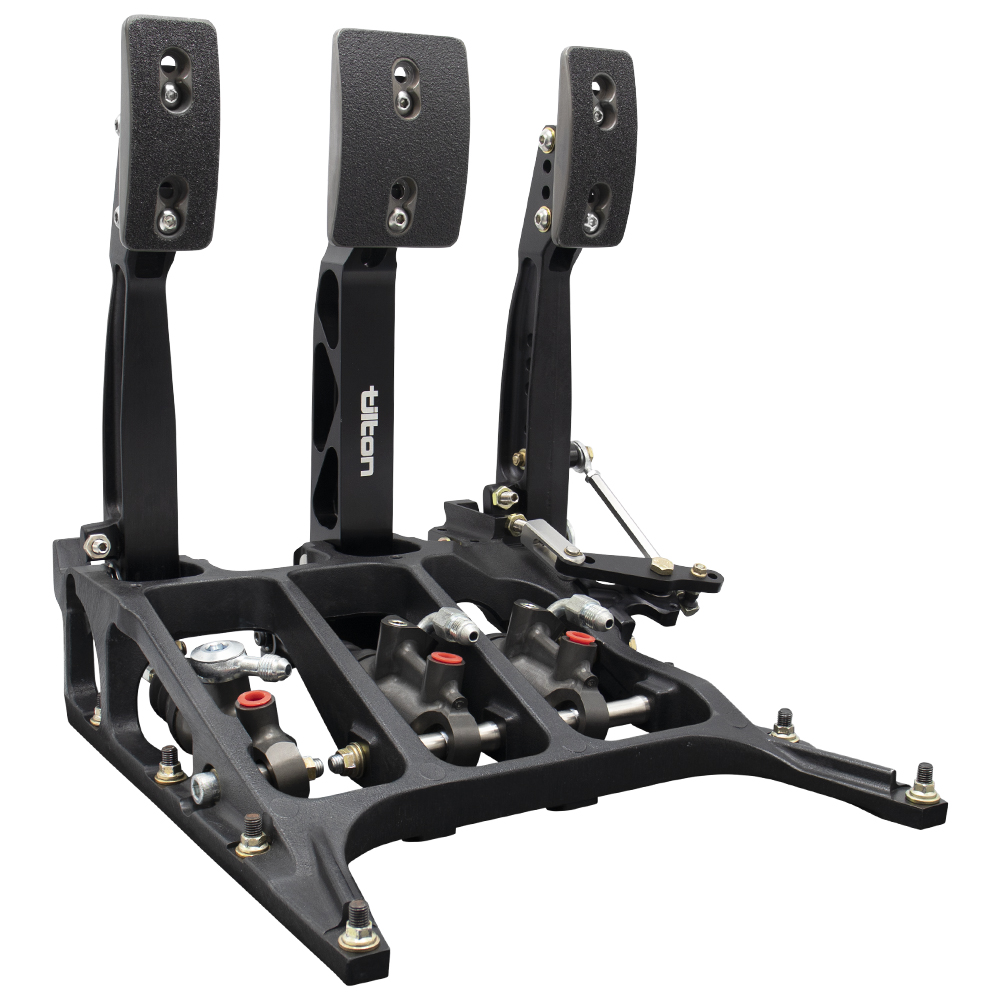

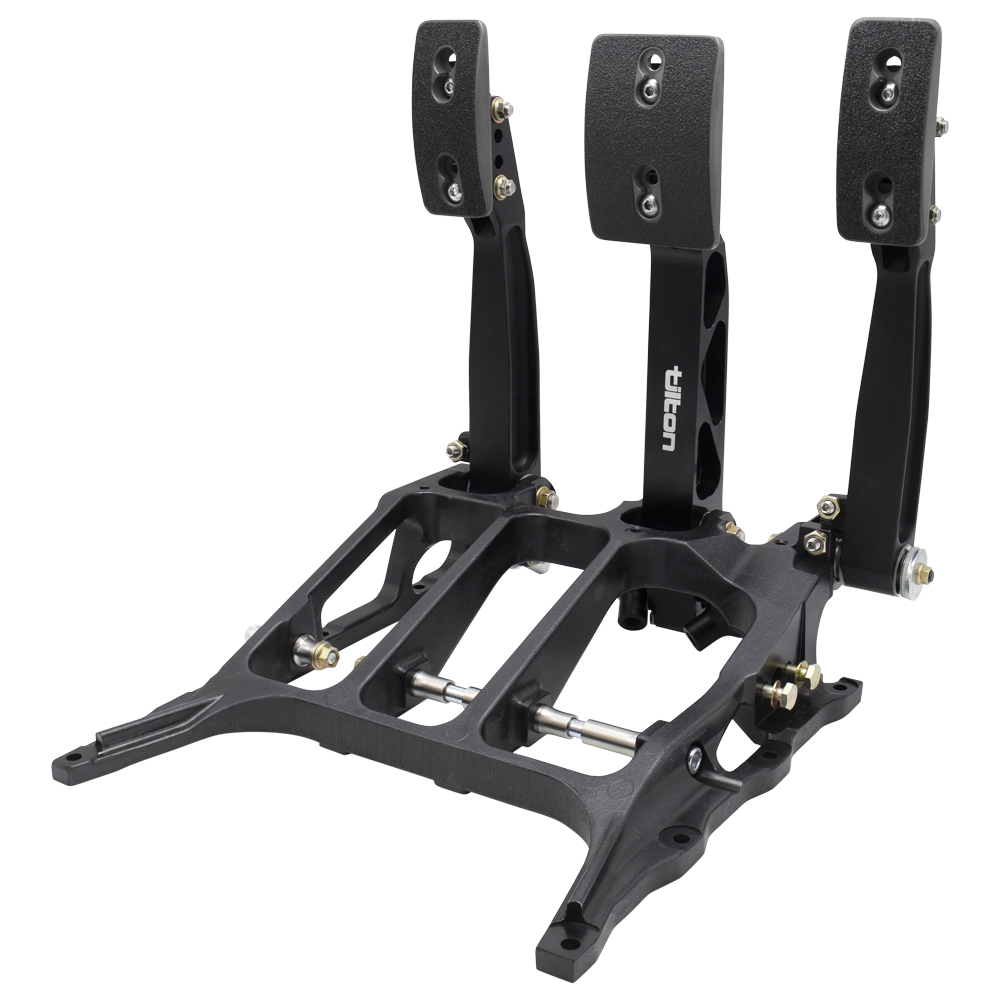

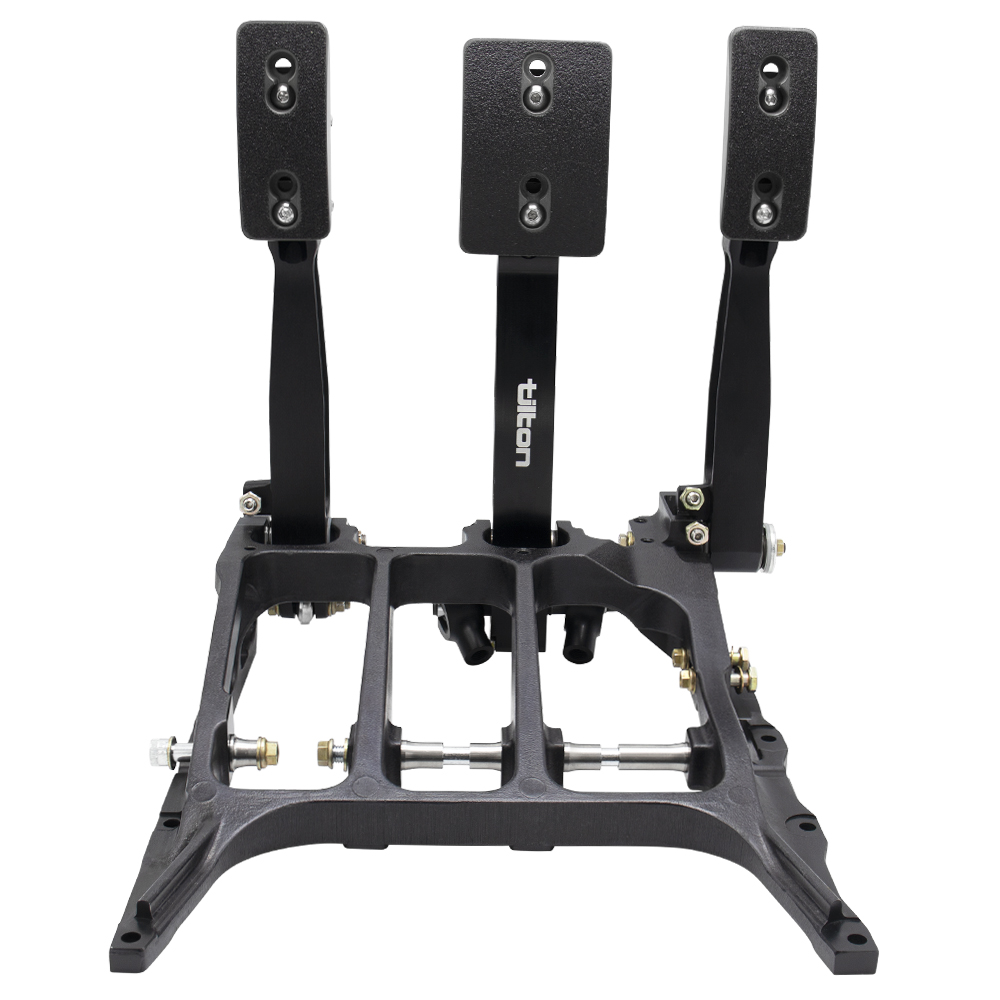

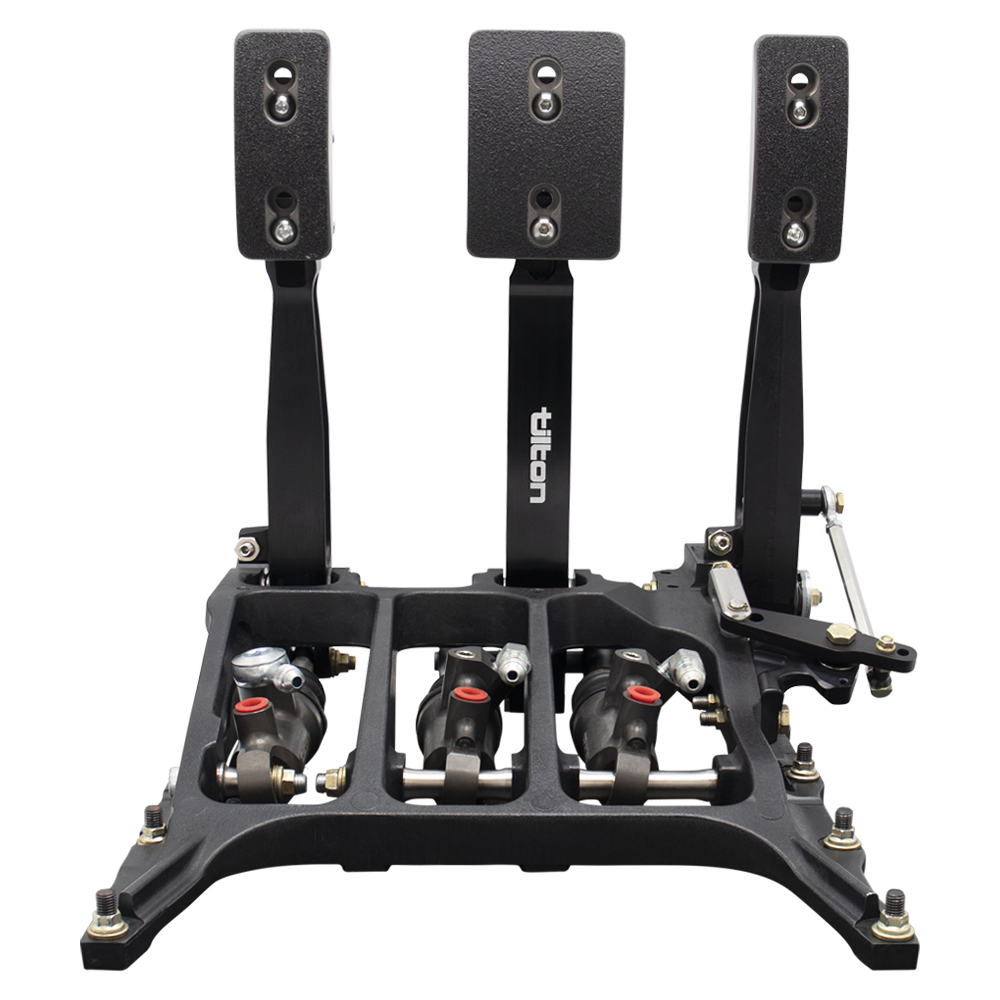

850-Series 3-pedal Underfoot Pedal Assembly

$1,080

Click here to find a Tilton dealer near you

Tilton’s 850-Series 3-pedal Underfoot pedal assembly merges the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies.  Features a high-efficiency balance bar designed to limit motion to the horizontal plane, reducing friction and brake pressure migration.

Features:

  • High-efficiency balance bar and pivot-mount master cylinders design
  • Forged aluminum pedals engineered for high rigidity and low weight
  • Adjustable pedal ratio (4.8:1 to 6.1:1) enables the brake pedal to be tuned to driver preference without having to change master cylinder bore size
  • Foot pads can be adjusted vertically, horizontally, and in angle to suit individual driver preferences
  • Lightweight and high-strength aluminum frame
  • 7/16” diameter balance bar provides maximum rigidity. PTFE coated aluminum clevises allow for increased durability and reduced friction
  • Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction
  • Throttle linkage kits options for mechanical linkage and Drive-by-Wire systems (sold separately)


Master Cylinders (sold separately):

Brakes: 78-Series or 79-Series master cylinders
Clutch: 78-Series master cylinders
