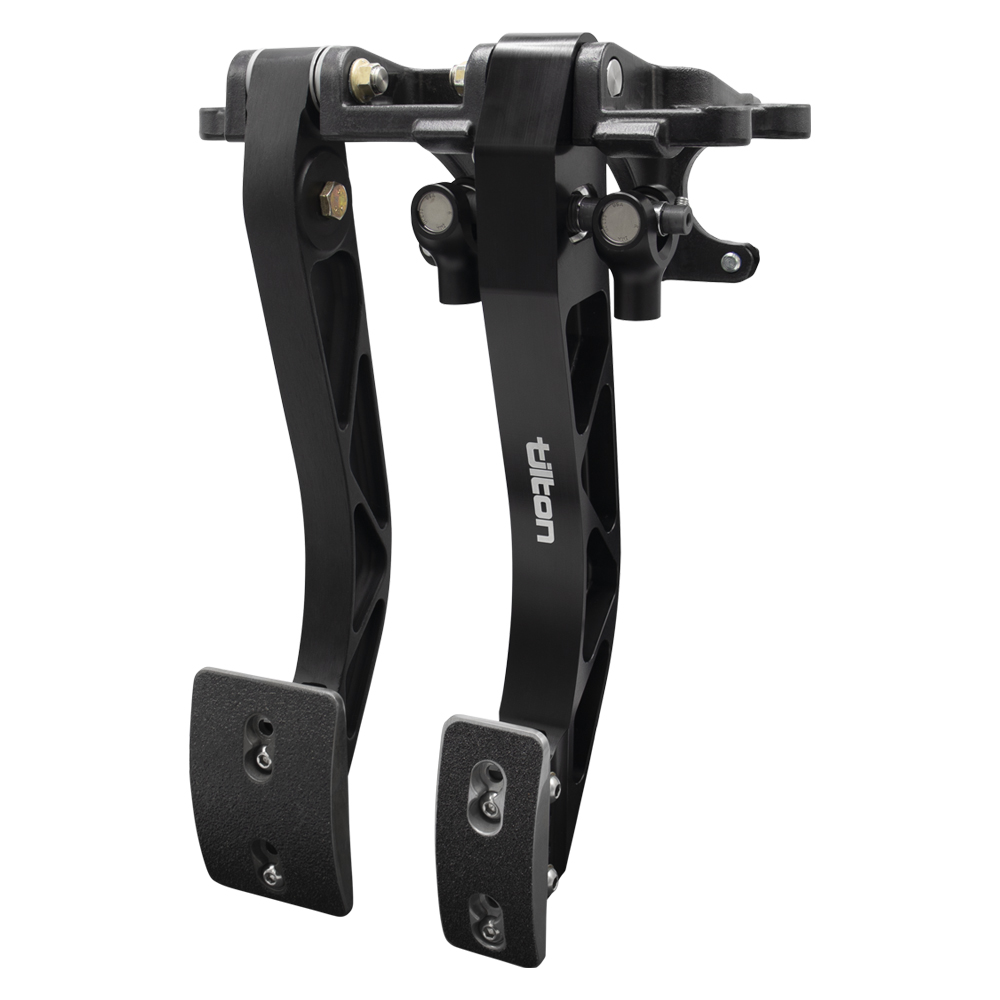

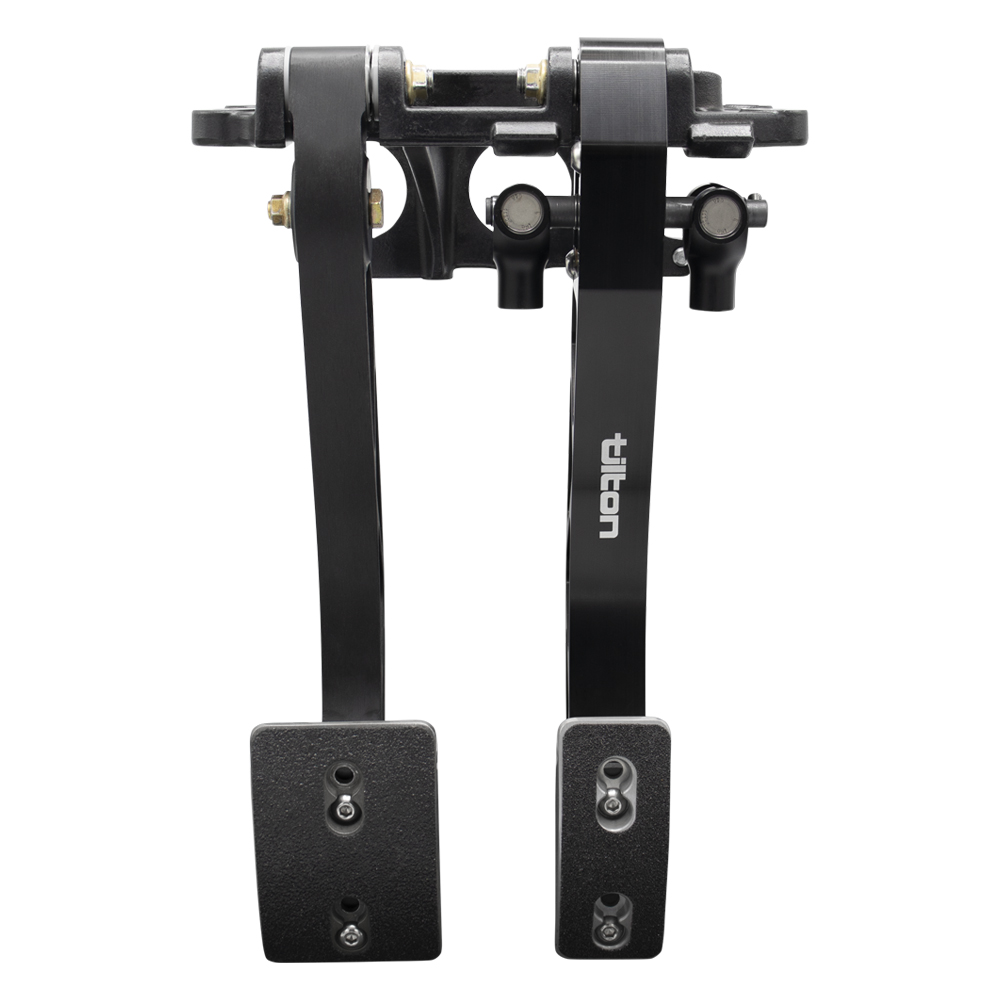

800-Series Firewall-Mount Pedal Assembly

$665

Click here to find a Tilton dealer near you

Tilton’s 800-Series firewall-mount pedal assembly merges the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies. Features high-efficiency spherical bearing type balance bar and pivot-mount master cylinder design.

Features:

  • High-efficiency balance bar and pivot-mount master cylinder design
  • Forged aluminum pedals are engineered for high rigidity and low weight.
  • Adjustable pedal ratios (5.0:1 – 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
  • Foot pads can be adjusted vertically, horizontally, and in angle to suit individual driver preferences

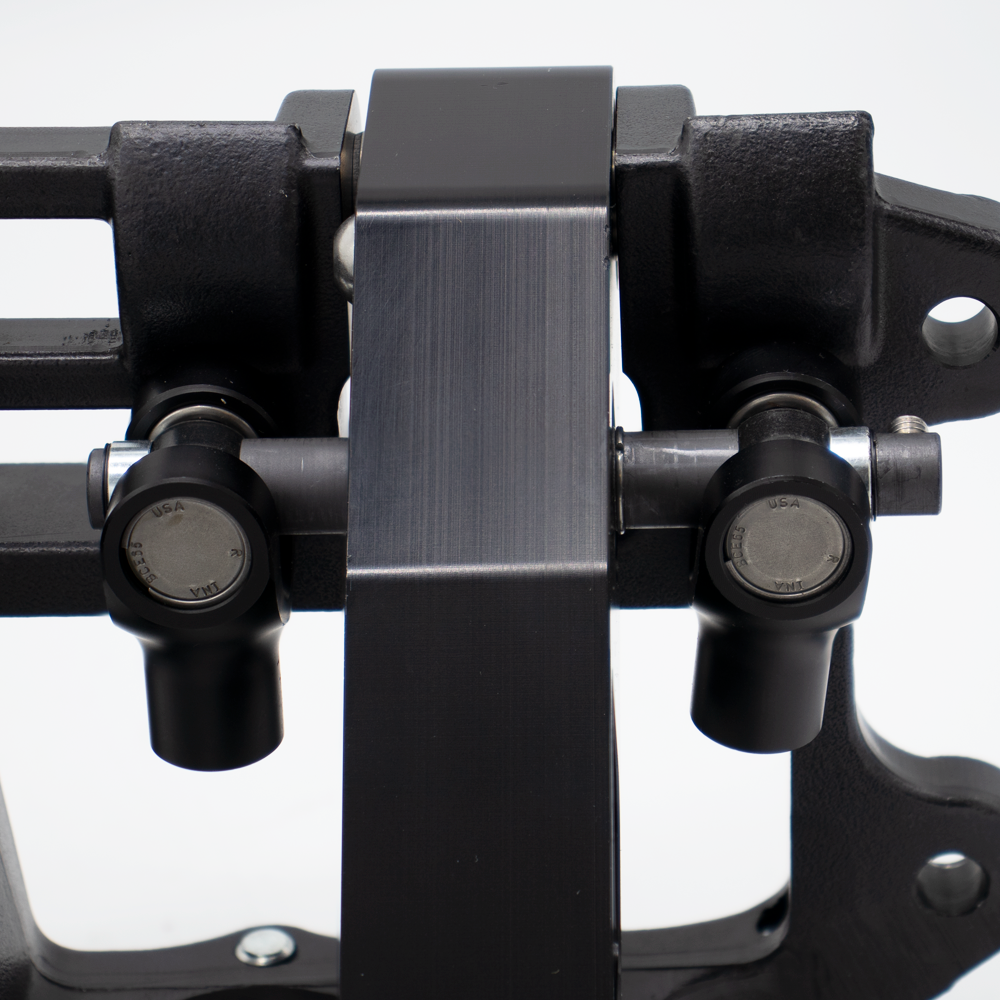

  • Large diameter 7/16”-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
  • Pedal pivots feature wave washers to reduce lateral pedal movement and oil-impregnated bronze bushings decrease stiction.
  • Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability.

Master Cylinders (sold separately):
Brakes: 78-Series or 79-Series master cylinders
Clutch: 76-Series master cylinders
